US Model Mercedes-Benz
1970-72 280SE 4.5, 300SE 4.5, 280SEL 4.5 and 300SEL 4.5

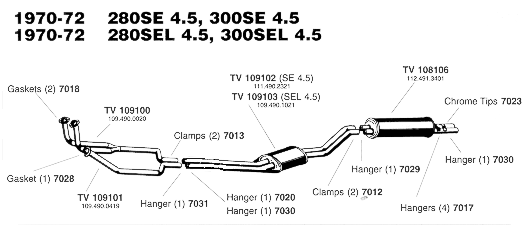

1970-72 280SE 4.5, 300SE 4.5, 280SEL 4.5 and 300SEL 4.5 Exhaust Systems

1970-72 280SE 4.5, 300SE 4.5, 280SEL 4.5 and 300SEL 4.5 Exhaust Systems
Quantity Part No. Description Reference
1 TV109100 Right Engine Pipe Assembly
109.490.0020
1 TV109101 Left Engine Pipe Assembly
109.490.0419
1 TV109102 Front Muffler Assembly for SE 4.5
111.490.2321
1 TV109103 Front Muffler Assembly for SEL 4.5
109.490.1021
1 TV108106 Rear Muffler Assembly
112.491.3401
2 7018 1.660" I.D. ALu Gasket Ring

007.603.042301
1 7028 1.90" I.D. ALu Gasket Ring

003.997.4440
2 7013 1 7/8" Pipe Clamp
1 7031 Oval Rubber Hanger

109.492.0082
1 7020 Metal Hanger Top

109.490.0343
1 7030 Metal Hanger Bottom

000.492.0043
2 7012 1 3/4" Pipe Clamp
1 7029 Metal Hanger Top

000.492.0943
4 7017 Rubber O-ring Hanger

112.492.0282
1 7030 Metal Hanger Bottom

000.492.0043
2 7023 1 3/4" Chrome Tip

123.492.0614
Call 1-800-243-1170 or E-mail us to Order!

Each of Timevalve’s quality, rust-free stainless steel 1970-72 Mercedes 280SE 4.5, 300SE 4.5, 280SEL 4.5, and 300SEL 4.5 aftermarket exhaust systems includes: right and left engine pipe assemblies, front muffler assembly, rear muffler and tail pipe assembly, that may be purchased “complete” or as individual components.

Separately priced installation kit includes: two gasket rings, four stainless steel pipe clamps, two metal hangers, four rubber o-ring hangers, and a vial of joint sealer compound.

We also supply chrome tips (priced separately).

E-mail us or call us toll-free at (800) 243-1170 to order!
